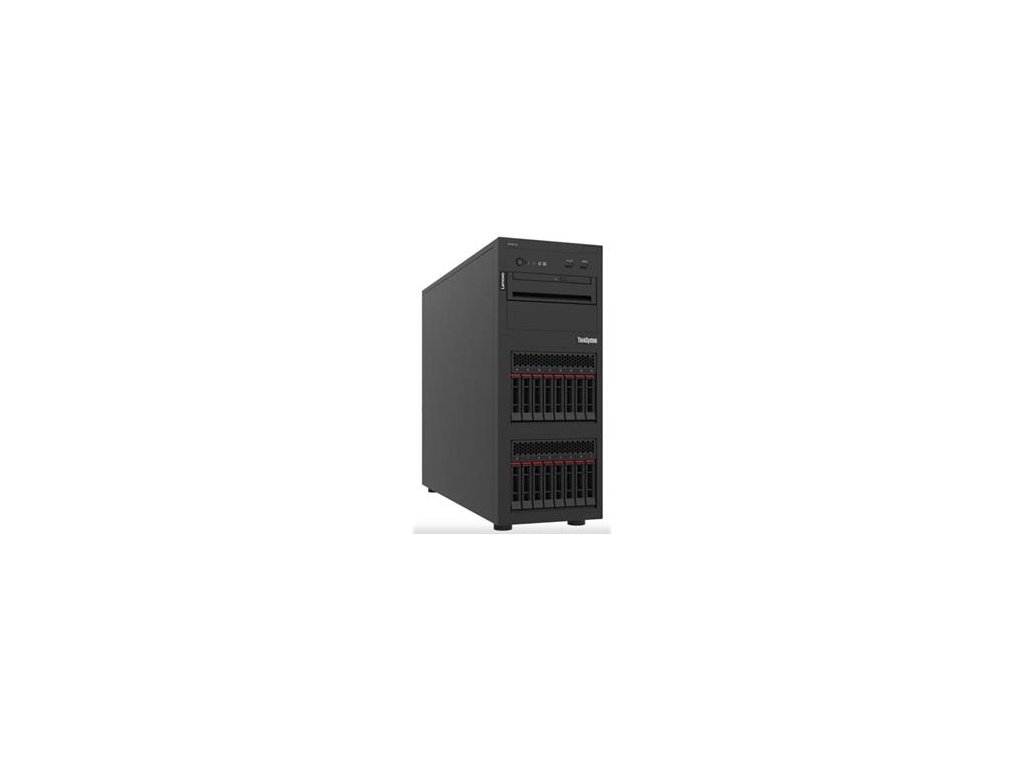

Lenovo ST250v2 Xeon E-2378 8C 65W 2.6GHz / 1x32GB / 0GB HS 2,5"(8) / 5350-8i / XCC-E / 750WTitanium

Kód: 7D8FA01YEA
38 608 Kč 31 907 Kč bez DPH
Skladem (9 ks)
Můžeme doručit do:
28.2.2024
Možnosti doručení
7D8FA01YEA Xeon E-2378 8C 65W 2.6G 1x 32GB 5350-8i 8x 2.5-in HS / Open?bay Opt Open 1x 750W HS / 2 TT Yes Ent Opt Yes

Machine type
7D8G - 1 year warranty
7D8F - 3 year warranty

Form factor
Tower (can be installed in a rack with the available R

Detailní informace

Detailní popis produktu

7D8FA01YEA Xeon E-2378 8C 65W 2.6G 1x 32GB 5350-8i 8x 2.5-in HS / Open?bay Opt Open 1x 750W HS / 2 TT Yes Ent Opt Yes

Machine type
7D8G - 1 year warranty
7D8F - 3 year warranty

Form factor
Tower (can be installed in a rack with the available Rack Mount Kit)

Processor
One Intel processor. Choose from:
Intel Xeon E-2300 Series processors ("Rocket Lake-E") up to to 8 cores, with core speeds up to 3.7 GHz
Intel Pentium G6405, G6505 and G6605 processors ("Comet Lake Refresh") with 2 cores, with core speeds up to 4.3 GHz

Chipset
Intel C256 chipset ("Tiger Lake") part of the "Tatlow" platform

Memory
Four DIMM sockets supporting Lenovo TruDDR4 DIMMs at 3200 MHz (Xeon processors) or 2666 MHz (Pentium processors). Support ECC UDIMMs.
Memory maximum Up to 128 GB using 4x 32 GB UDIMMs.
Memory protection Error-correcting code (ECC)

Disk drive bays
Available configurations:
8x or 16x 2.5-inch SAS/SATA hot-swap drive bays
4x or 8x 3.5-inch SAS/SATA hot-swap drive bays
Both 4x 3.5-inch and 8x 2.5-inch SAS/SATA hot-swap drive bays
Up to 8x 3.5-inch simple-swap SATA drive bays
7x 3.5-inch simple-swap SATA drive bays + 1x 3.5-inch simple-swap NVMe drive bay
In addition, the ST250 V2 supports two M.2 drives installed in an M.2 adapter which is installed in PCIe slot. (support for M.2 is planned for 2Q/2022)
Maximum internal storage
2.5-inch drives:
15.36TB using 16x 960GB 2.5-inch SAS/SATA SSDs
28.8TB using 16x 1.8TB 2.5-inch HDDs
3.5-inch drives:
144TB using 8x 18TB 3.5-inch HDDs
7.68TB using 8x 960GB 3.5-inch SAS/SATA SSDs
Intermix of SAS and SATA is supported.

Storage controller
Onboard 6 Gb SATA for simple-swap drive configurations, using embedded Intel RSTe software RAID, supporting RAID 0, 1, 10, 5, 50
12 Gb SAS/SATA RAID adapters
12 Gb SAS/SATA host bus adapters

Optical drive bays Two half-height 5.25-inch bays for optical or tape drives. Supports SATA DVD-ROM or DVD-RW (multiburner). Note: If the onboard SATA controller is used to connect the drive bays, then only 6 drives can be installed if an optical drive is installed.
Tape drive bays Two half-height 5.25-inch bays for optical or tape drives. Support for one RDX drive.
Network interfaces Two integrated Gigabit Ethernet 1000BASE-T ports (RJ-45) based on Broadcom BCM5720 embedded controller, one can be shared with XCC for systems management. Third dedicated Gigabit Ethernet port for XCC systems management.

PCI Expansion slots Four PCIe slots (1x PCIe 4.0, 3x PCIe 3.0) as follows:
Slot 1: PCIe G3 x4 (x4 slot, open-ended) 25W full-height half-length
Slot 2: PCIe G4 x16 (x16 slot, closed-ended) 75W full-height half-length
Slot 3: PCIe G3 x4 (x4 slot, open-ended) 25W full-height half-length
Slot 4: PCIe G3 x4 (x8 slot, closed-ended) 25W full-height half-length
Note: Slot 2 is PCIe Gen 4 with a Xeon processor, and PCIe Gen 3 with a Pentium processor

Ports
Front:
One USB 3.2 G1 (5 Gb/s) port
One USB 2.0 port (also for XClarity Mobile connectivity for local systems management)
Rear:
Four USB 3.2 G2 (10Gb/s) ports
One VGA video
One RJ-45 systems management
Two RJ-45 GbE network ports
One serial port
Internal:
One internal USB 3.0 port for RDX drive

Cooling Supports ASHRAE A2 environments. Certain configurations support ASHRAE A3. Two or three fixed system fans depending on the drive bay configuration. Additional fans attached to the processor heat sink and in the power supplies.

Power supply
Model dependent choices
One fixed 250W power supply: 80 PLUS Platinum certified, ErP Lot 9 compliant
One fixed 300W power supply: 80 PLUS Gold certified
Two hot-swap 550W redundant power supplies, 80 PLUS Platinum certified, Energy Star and ErP Lot 9 compliant.

Hot-swap parts Hard drives and 550W power supplies
Systems management Operator panel with status LEDs. XClarity Controller embedded management, XClarity Administrator centralized infrastructure delivery, XClarity Integrator plugins, and XClarity Energy Manager centralized server power management. Optional XClarity Controller Advanced to enable remote control functions.
Security features Power-on password, administrator's password, Trusted Platform Module, supporting TPM 2.0. Optional chassis intrusion switch. Padlock loop and Kensington cable slot and optional lockable front door for physical security.
Video G200 graphics with 16 MB memory, integrated into the XClarity Controller. For use with local Administrator functions (not designed for workstation use). Maximum resolution is 1920x1200 32bpp at 60Hz.
Operating systems supported Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi. See the Operating system support section for specifics.
Limited warranty Three-year or one-year (model dependent) customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD).
Service and support Optional service upgrades are available through Lenovo Services: 4-hour or 2-hour response time, 6-hour fix time, 1-year or 2-year warranty extension, software support for Lenovo hardware and some third-party applications.
Dimensions Width: 176 mm (6.9 in.), height: 444 mm (17.5 in.), depth: 578 mm (22.8 in.). See Physical and electrical specifications for details.
Weight Fully configured: 23.6 kg (52 lb)





LenovoPress - https://lenovopress.com/lp1548-thinksystem-st250-v2

Doplňkové parametry

Kategorie: SERVERY
Záruka: 36 měsíců
Hmotnost: 15 kg
3,5" slot: 0
5,25" slot: 1
Cache battery backup: Ne
Cache na řadiči: Ne
CPU: Intel Xeon 6Core
CPU patic: 1
Ethernet: GL
FDD mechanika: Ne
HDD formát: 2,5"
HDD hot plug: Ano
HDD technologie: SATA III
Max. počet HDD: 16
Optická mechanika: Ne
PCI sloty: Ano
PCI-e sloty: Ano
PCI-X sloty: Ne
Pozice pro další zdroj: Ano
? Provedení: Tower
Rack provedení: Ne
RAID řadič: RAID 0,1,10,5
RAM obsazeno: 16 GB a více
RAM slotů: 4
Výrobce: Lenovo
Vzdálená správa: Ano
Zdroj hot plug: Ano
Zdroj osazený: Ano
